IP68 RET Cable AISG Fixed Connector AISG C485 A5 Male To A6 Female Connector

Brand Name : BEDE

Model Number : AISG-A5-A6

Certification : CE RoHS UL

Place of Origin : China

MOQ : 150 pcs

Price : negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 3000 pcs per day

Delivery Time : within 5 days

Packaging Details : packing in sealing PE bags each and then 100 pcs packing in a carton

shell material : copper with nickel plated

pins material : brass with gold plated

waterproof : IP68

length : 100±5mm

Rated current : 5A

Rated Voltage : 32V

Contact Now

RET Cable AISG Fixed Connector AISG C485 A5 Male Connetor To A6 Female Connector

Descripation

  • AISG Internal Cable Connector
  • AISG C485 standard fixed connector A5 style to A6 style
  • With 18AWG ground wire and ground ring, wire length 100±5mm or customized
  • With a XH-5H connector, 22AWG cable, length 100±5mm, this connector can be customized as needed, and the cable length can be customized
  • waterproof IP67, rated current 3A and rated voltage 32V

IP68 RET Cable AISG Fixed Connector AISG C485 A5 Male To A6 Female Connector

Wiring method

wire color A5 male connector A6 Female connector XH-5Y connector
pins pins pins
Red color 1 1 1
/ 2 2 /
white color 3 3 2
/ 4

4

 /
brown color 5 5 3
blue color 6 6 4
balck color 7 7 5
/ 8 8 /
18AWG wire out shell / ground ring

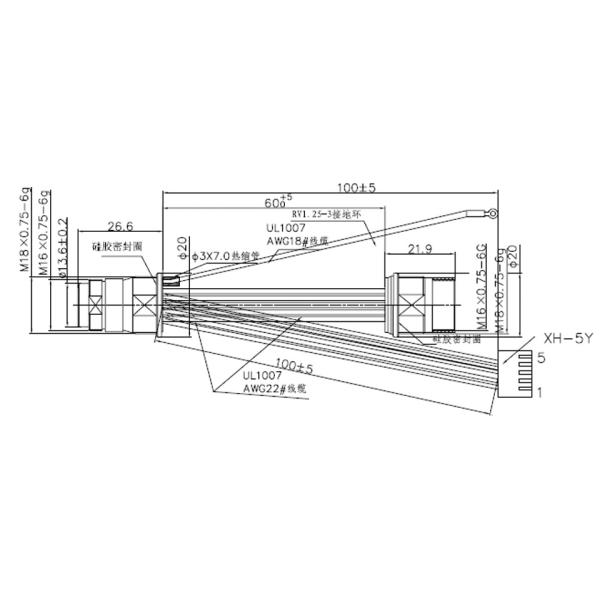

about the size of male connector and female connector, please refer to Antenna Interface Standards Group Standard No. AISG C485

IP68 RET Cable AISG Fixed Connector AISG C485 A5 Male To A6 Female ConnectorIP68 RET Cable AISG Fixed Connector AISG C485 A5 Male To A6 Female Connector
